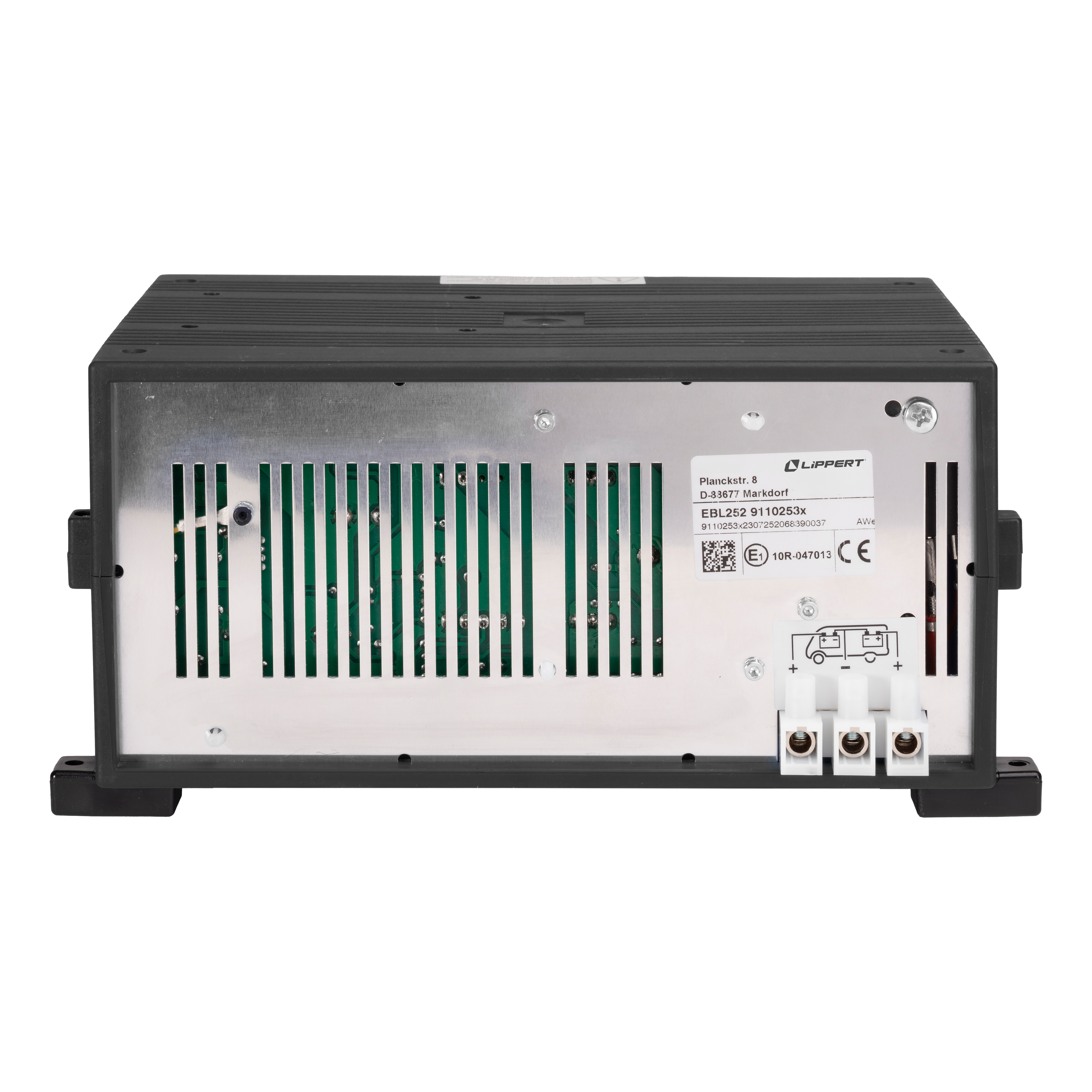

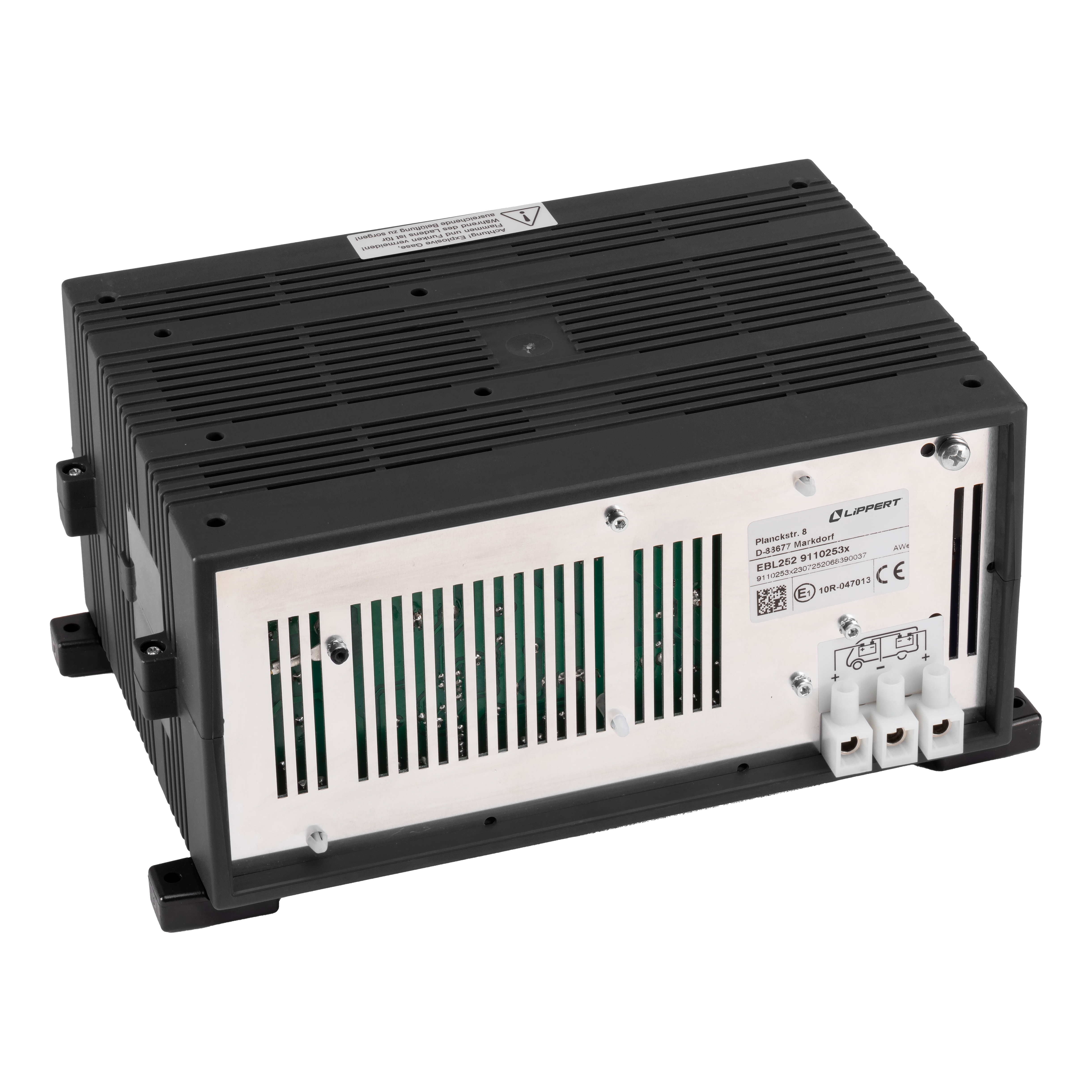

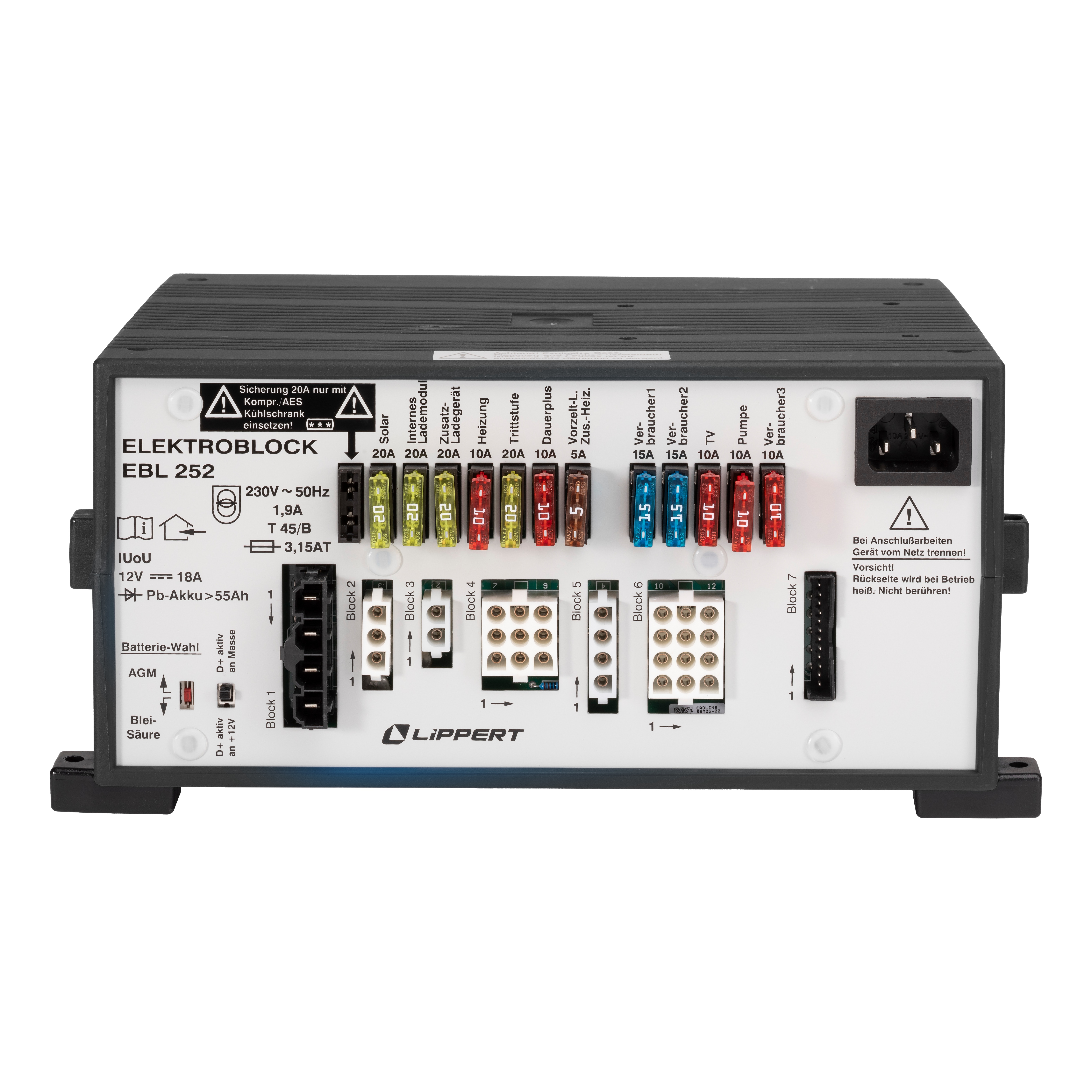

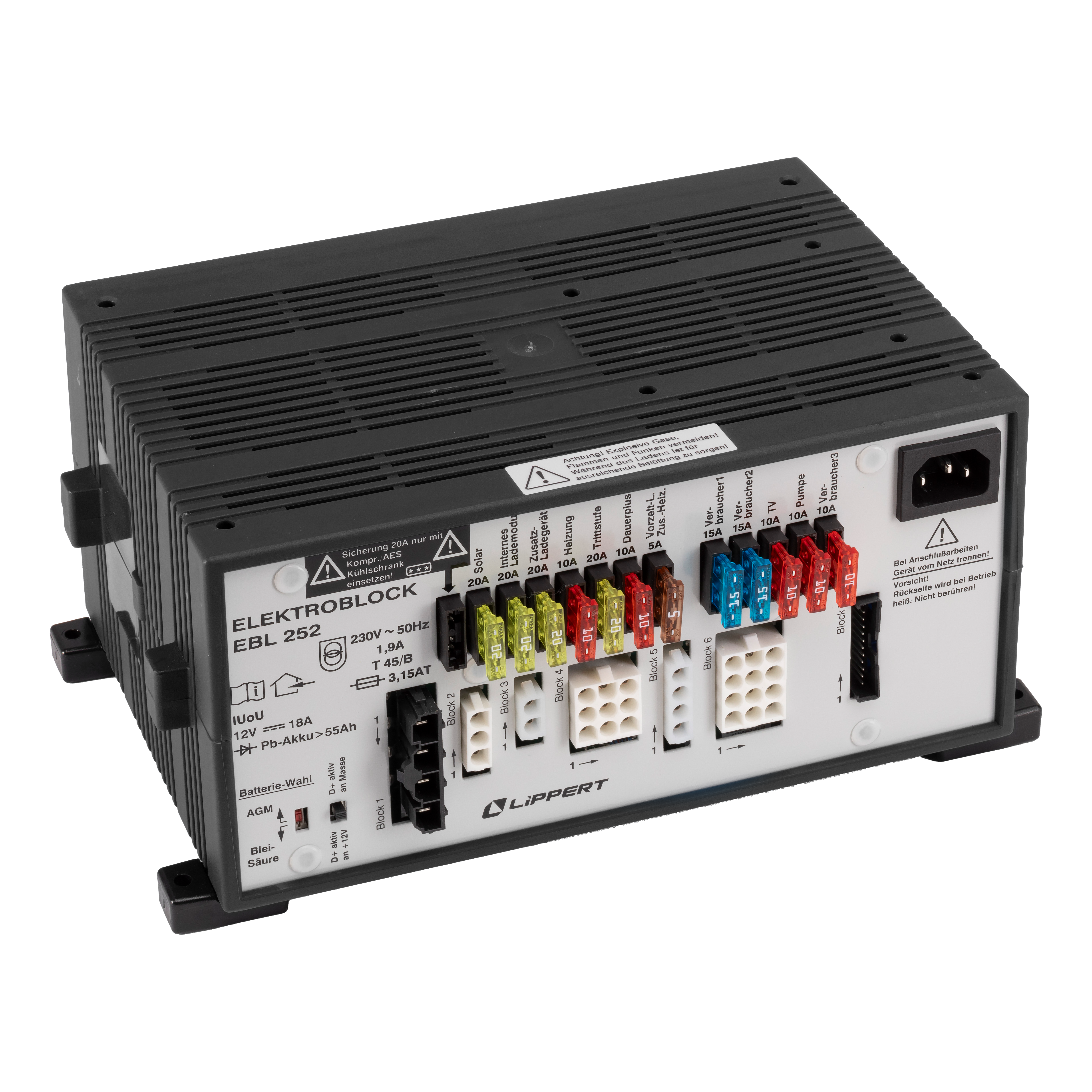

EBL 252

Devices for generating charging voltages for all batteries installed in the motorcaravan (living area, starter, or auxiliary battery)
EBLs distribute and protect the output circuits
The overall supply switching is via two main switches
The living area supply on / off switch and the vehicle supply on / off switch with complete isolation of all consumers from the batteries (shutdown)
Connection facility for auxiliary chargers (18 A)
Connection facility for solar charge controller (up to 20 A charging current)
D+ signal evaluation
Refrigerator supply (configurable) for absorber, compressor, or AES refrigerators
Low quiescent current consumption
Optional integrated overvoltage protection
IUoU, integrated charging output with adjustable slide switch for lead acid and AGM
